Hamilton Island (YBHM)
Positions
| Name | Callsign | Frequency | Login ID |
|---|---|---|---|
| Hamilton Island ADC | Hamilton Tower | 118.700 | HM_TWR |
| Hamilton Island ATIS | 128.350 | YBHM_ATIS |
Airspace

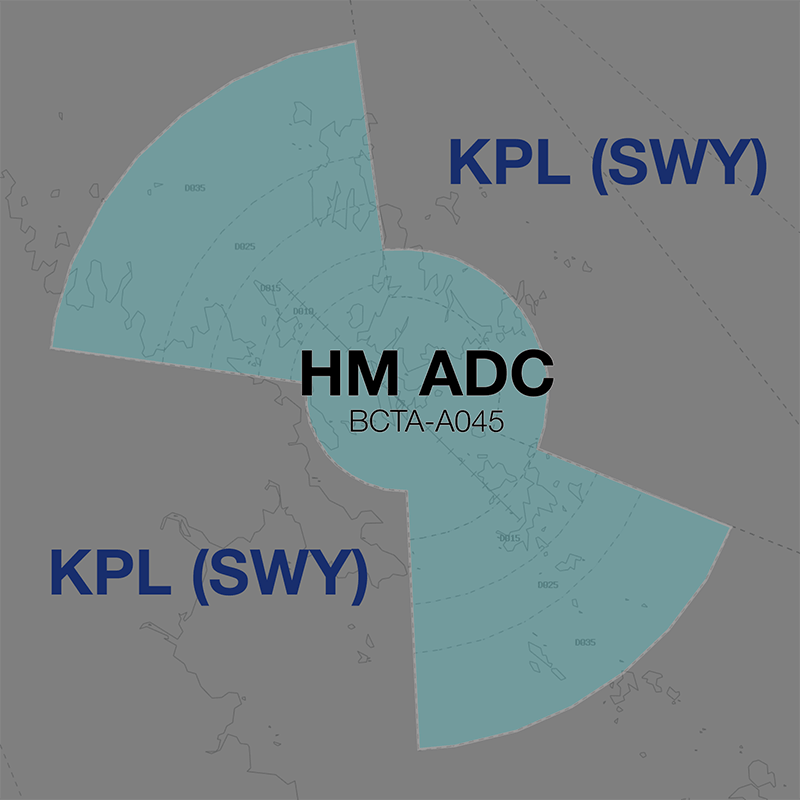

HM ADC is responsible for the Class D airspace in the HM keyhole within 22NM OVRUN BCTA to A045.
Refer to Class D Tower Separation Standards for more information.
Separation
Surveillance
Surveillance coverage can be expected to be not available below A031 in the HM CTR. Although HM ADC is not permitted to use surveillance for separation, KEN(SWY) may assist by establishing surveillance separation standards via coordination
Coordination
Departures
Next coordination is required from HM ADC to KEN(SWY) for all aircraft entering KPL(SWY) CTA.
The Standard Assignable level from HM ADC to KPL(SWY) is:
| Aircraft | Level |
|---|---|
| All | The lower of A050 and RFL |
Arrivals/Overfliers
KEN(SWY) will heads-up coordinate all arrivals/overfliers to HM ADC
Phraseology
SWY -> HM ADC: "Via OPOSI for the RNP-U, JST848”
HM ADC -> SWY: "JST848, A060"
The Standard Assignable level from KPL(SWY) to HM ADC is A060, any other level must be prior coordinated.
