Adelaide TCU
Positions
| Name | ID | Callsign | Frequency | Login ID |
|---|---|---|---|---|
| Adelaide Approach East | AAE | Adelaide Approach | 118.200 | AD_APP |
| Adelaide Approach West | AAW | Adelaide Approach | 124.200 | AD-W_APP |
| Adelaide Radar | AAR | Adelaide Centre | 130.450 | AD-R_DEP |
| Adelaide Flow | AFL | AD_FMP |
Non-Standard Positions
Non-standard positions may only be used in accordance with VATPAC Air Traffic Services Policy.
Approval must be sought from the bolded parent position prior to opening a Non-Standard Position, unless NOTAMs indicate otherwise (eg, for events).
Airspace
The Vertical limits of the AD TCU are SFC to F245.
Reclassifications
PF CTR
PF CTR reverts to Class G when PF ADC is offline, and is administered by the relevant AD TCU controller.
See also: PF ADC Offline.
ED CTR
ED CTR reverts to Class G when ED ADC is offline, and is administered by the relevant AD TCU controller.

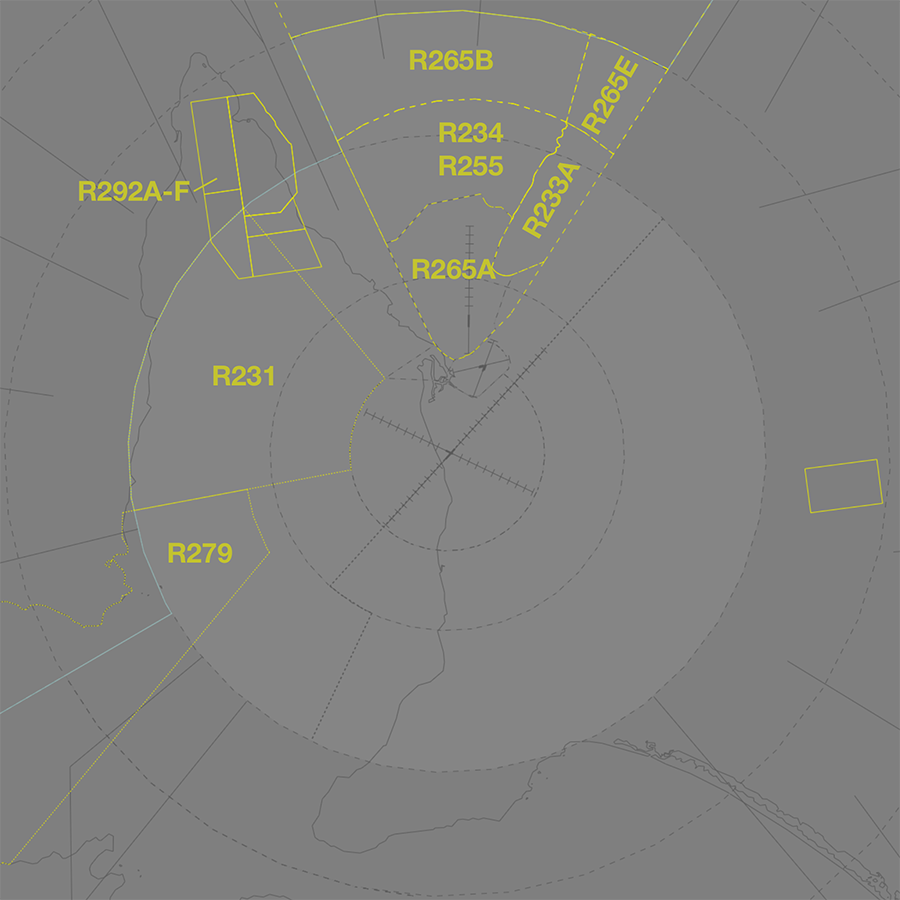

Airspace Division
Note
The following diagram does not include non AD TCU areas of responsibility such as PF CTR or ED CTR
Adelaide Radar (AAR)
AAR is responsible for the provision of FIS in Class G airspace within the AD TMA. It is a role normally performed by AAE but can be delegated to any TMA controller. The position is designed to reduce the workload of other TMA positions by obtaining a pilot's request, identifying them, performing any necessary coordination, then handing them to the relevant controller who will issue clearance if appropriate. Explicit coordation requirements exist between AAR and other TCU positions.
Example
During a busy event, AAE is experiencing a high workload and wishes to delegate the AAR role to AAW controller who isn't as busy.
Local Procedures
Scenic Coastal Flights
VFR aircraft may transit the control zone tracking coastal north or southbound, generally at A005. AD TCU is responsible for ensuring these aircraft remain separated from aircraft arriving/departing at YPAD and may delegate this responsibility to AD ADC.
Coordinate the aircraft with ADC, including the use of the appropriate clearance limit in the table below, then issue airways clearance. Before the aircraft reaches the clearance limit, transfer them to ADC who will manage their transit of the extended runway centreline. The clearance limits in the table below will ensure that coastal aircraft remain clear of the runway 05 approach path and runway 23 departure/missed approach path.
| Direction of Travel | Clearance Limit |
|---|---|
| Northbound | BTJ |
| Southbound | HNLY |
Phraseology
CEY: "Adelaide Approach, CEY, Cessna 172, 4nm south of PNL, 1,000ft, received charlie, request coastal northbound"
AD TCU: "CEY, Adelaide Approach, squawk 0542, remain clear of class C airspace"
CEY: "Squawk 0542, remain OCTA, CEY"
TCU -> ADC: "South of PNL, CEY, for coastal northbound, 500ft, clearance limit BTJ"
ADC -> TCU: "CEY"
AD TCU: "CEY, identified, cleared coastal offshore northbound, not above 500ft, clearance limit BTJ"
CEY: "Cleared coastal offshore northbound, not above 500ft, clearance limit BTJ, CEY"
Before CEY reaches BTJ:
AD TCU: "CEY, contact Adelaide Tower, 120.5"
CEY: "120.5, CEY"
Once the aircraft has transited the extended runway centreline and is clear of potential conflict with YPAD, ADC will transfer them back to the TCU.
Departure and Arrival Procedures
Visual Approaches
Adelaide utilises visual approaches extensively to help facilitate a smooth sequence of jet and non-jet arrivals. There are two different configurations of visual arrivals used, depending on the cloud base.
Jets
Jet aircraft will be assigned the relevant Alpha or Zulu STAR to Runway 23 or 05.
Non-Jets
Non-Jet aircraft will be processed via a combination of:
- Non-jet Victor STARs for VSA
- Alpha/Zulu STARs for IAP
- No STAR, expecting vectors or direct tracking for VSA or IAP
Tip
Refer to the TBD page for more details on the ATIS conditions and feeder fix combinations which will determine how each aircraft is processed.
Non-jet aircraft processed via direct tracking for a VSA should be vectored or cleared as necessary to join a circuit leg (generally final or downwind).
Offline Towers
PF ADC Offline
Due to the low level of CTA at YPPF, it is best practice to give airways clearance to aircraft at the holding point, to ensure departing aircraft can have uninterrupted climb.
Phraseology
ABC: "Adelaide Approach, ABC, PC12, POB 8, IFR, taxiing YPPF for YPAG, Runway 21R"
AD TCU: "ABC, Adelaide Approach, Squawk 3601, no reported IFR traffic, report ready at the holding point for airways clearance"
ABC: "Squawk 3601, wilco, ABC"
ABC: "ABC, ready Runway 21R, request clearance"
AD TCU: "ABC, cleared to YPAG via DOLVU, flight planned route, PARAFIELD1 departure, climb via SID to A040"
ABC: "Cleared to YPAG via DOLVU, flight planned route, PARAFIELD1 departure, climb via SID to A040, ABC"
AD TCU: "ABC, assigned heading right 360, report airborne"
ABC: "Assigned right 360, wilco, ABC"
Flow
Local Knowledge
- With Visual approaches in use, Non-Jets should be issued the relevant Non-Jet STAR.
- If delays are required, additional track miles may be obtained by issuing the relevant Alpha/Zulu STAR.
- Where no Non-Jet Victor STAR is available (eg, via DRINA or KLAVA), Non-Jets may be issued No Star, and instructed to join the circuit in VMC, to reduce track miles.
- With RWY 12 in use for arrivals, non-jets from the West should be assigned RWY 12 by default. Additional track miles may be obtained by assigning RWY 05/23.
- Otherwise, non-jet aircraft from the west may be issued RWY 12 (or RWY 30 from the east on pilot request) to reduce track miles.
- A competent pilot may be issued the appropriate Victor/Xray/Whiskey STAR in lieu of the Alpha STAR to reduce track miles.
Tip
When flowing using the Arrivals List Window, AFL may use the abbreviations listed in the TBD page to prescribe certain STARs and Runways.
Flow Tables
The tables below give an estimated time in minutes from the Feeder Fix to the Threshold.
| STAR | RWY 05 | RWY 23 |
|---|---|---|
| ATNAR A/Z | 13 | 16 |
| ATNAR V | 12^ | 14 |
| ATNAR W | 12^ | - |
| BUGSU A/Z AGROS transition KLAVA transition MARGO transition |
15 16 14 |
16 17 15 |
| BUGSU V AGROS transition KLAVA transition MARGO transition |
14 15 13 |
14 15 13 |
| BUGSU W AGROS transition KLAVA transition MARGO transition |
14 15 13 |
- - - |
| DRINA A/Z | - | 14 |
| DRINA V | - | 13 |
| INTOG V/X/Z | 14 | - |
| KAKLU A/Z | 16 | 12^ |
| KAKLU V/X | 15 | - |
| RAYNA A/Z Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
13 13 |
| RAYNA V Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
12 12 |
| Arrival | RWY 05 | RWY 12 | RWY 23 | RWY 30 |
|---|---|---|---|---|
| ATNAR A/Z STAR | 13 | - | 16 | - |
| ATNAR V STAR | 12^ | - | 14 | - |
| ATNAR W STAR | 12^ | - | - | - |
| ATPIP STAR Feeder Fix: INTOG - Circuit Join Feeder Fix: INTOG - IAP |
13 - |
13 17 |
15 - |
12 13 |
| BEVSO STAR Circuit Join IAP |
13 17 |
13 15 |
12 12 |
13 16 |
| BUGSU A/Z STAR AGROS transition KLAVA transition MARGO transition |
15 16 14 |
- - - |
16 17 15 |
- - - |
| BUGSU V STAR AGROS transition KLAVA transition MARGO transition |
14 15 13 |
- - - |
14 15 13 |
- - - |
| BUGSU W STAR AGROS transition KLAVA transition MARGO transition |
14 15 13 |
- - - |
- - - |
- - - |
| DRINA A/Z STAR | - | - | 14 | - |
| DRINA V STAR | - | - | 13 | - |
| ELROX V STAR | 10^ | 10^ | 12^ | - |
| GULFS V STAR Feeder Fix: ATNAR |
12^ |
11^ |
12 |
- |
| INTOG V/X/Z STAR | 14 | - | - | - |
| KAKLU A/Z STAR | 16 | - | 12^ | - |
| KAKLU V/X STAR | 15 | - | - | - |
| PAMMY V STAR AGROS transition MARGO transition |
12 12^ |
11^ 10^ |
12^ 11^ |
- - |
| RAYNA A/Z STAR Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
- - |
13 13 |
- - |
| RAYNA V STAR Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
- - |
12 12 |
- - |
| SURGN STAR Feeder Fix: KAKLU - Circuit Join Feeder Fix: KAKLU - IAP |
12^ - |
12^ 15 |
11^ - |
12^ 13 |
| No STAR - Circuit Join Feeder Fix: AGROS Feeder Fix: ATNAR Feeder Fix: DRINA Feeder Fix: ELROX Feeder Fix: KLAVA Feeder Fix: MARGO |
12 12^ 13 - 16 12^ |
11^ 11^ 12^ - 12^ 10^ |
12 13 12 - 12^ 12^ |
12^ 12^ 11^ 11^ 13 11^ |
| No STAR - Direct to IAF Feeder Fix: AGROS Feeder Fix: ATNAR Feeder Fix: ELROX Feeder Fix: MARGO |
- - 10^ - |
11^ 11^ 11^ 11^ |
- - 16 - |
17 17 14 16 |
| Arrival | RWY 05 | RWY 12 | RWY 23 | RWY 30 |
|---|---|---|---|---|
| ATNAR A/Z STAR | 14 | - | 19 | - |
| ATNAR V STAR | 14^ | - | 16 | - |
| ATNAR W STAR | 14^ | - | - | - |
| ATPIP STAR Feeder Fix: INTOG - Circuit Join Feeder Fix: INTOG - IAP |
15 - |
14 19 |
15 - |
14 14 |
| BEVSO STAR Circuit Join IAP |
15 19 |
15 17 |
14 14 |
15 18 |
| BUGSU A/Z STAR AGROS transition KLAVA transition MARGO transition |
16 18 15 |
- - - |
18 19 17 |
- - - |
| BUGSU V STAR AGROS transition KLAVA transition MARGO transition |
16 17 15 |
- - - |
15 17 14 |
- - - |
| BUGSU W STAR AGROS transition KLAVA transition MARGO transition |
16 17 15 |
- - - |
- - - |
- - - |
| DRINA A/Z STAR | - | - | 16 | - |
| DRINA V STAR | - | - | 15 | - |
| ELROX V STAR | 11^ | 12^ | 13^ | - |
| GULFS V STAR Feeder Fix: ATNAR |
13^ |
13^ |
14 |
- |
| INTOG V/X STAR | 15 | - | - | - |
| INTOG Z STAR | 16 | - | - | - |
| KAKLU A/Z STAR | 18 | - | 13^ | - |
| KAKLU V/X STAR | 17 | - | - | - |
| PAMMY V STAR AGROS transition MARGO transition |
14 13^ |
13^ 12^ |
13^ 12^ |
- - |
| RAYNA A/Z STAR Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
- - |
14 14 |
- - |
| RAYNA V STAR Feeder Fix: ERITH Feeder Fix: KLAVA |
- - |
- - |
14 14 |
- - |
| SURGN STAR Feeder Fix: KAKLU - Circuit Join Feeder Fix: KAKLU - IAP |
13^ - |
13^ 17 |
13^ - |
13^ 14 |
| No STAR - Circuit Join Feeder Fix: AGROS Feeder Fix: ATNAR Feeder Fix: DRINA Feeder Fix: ELROX Feeder Fix: KLAVA Feeder Fix: MARGO |
14 13^ 14 - 15 13^ |
13^ 13^ 14^ - 13^ 12^ |
14 15 14 - 13^ 13^ |
14^ 14^ 13^ 13^ 15 13^ |
| No STAR - Direct to IAF Feeder Fix: AGROS Feeder Fix: ATNAR Feeder Fix: ELROX Feeder Fix: MARGO |
- - 11^ - |
13^ 13^ 12^ 12^ |
- - 18 - |
20 20 16 19 |
Corrections
| Situation | Correction |
|---|---|
| Assigned a reduced speed | +1 min, except ^ |
| Over 40kt of head/tailwind component | +1 min for headwind -1 min for tailwind |
Assumptions
- Nil wind
- The feeder fix for all STARs is the waypoint coinciding with the title of the STAR (or transition, if applicable), except:
- The feeder fix for the ATPIP STAR is INTOG
- Aircraft issued a Circuit Join will be vectored/cleared to a 5nm final or a downwind join of the circuit
- Non-jet aircraft issued the ATPIP, BEVSO, or SURGN STARs will be processed for either a circuit join or IAP (as dictated by the flow table comment)
- Aircraft via INTOG for the RWY 23 IAP will be rerouted via DRINA for the DRINA STAR
Calculator
The following calculator will generate a landing time from a feeder fix ETA, or the reverse.
Coordination
Enroute
Departures
Voiceless for all aircraft:
- Tracking via a Procedural SID terminus; and
- Assigned the lower of
F240or theRFL
Note
Aircraft are not required to be tracking via the SID procedure, simply tracking via any of the terminus waypoints (regardless of departure airport or assigned SID) is sufficient to meet the criteria for voiceless coordination.
All other aircraft going to TBD CTA must be Heads-up coordinated by AD TCU prior to the boundary.
Phraseology
AD TCU -> TBD: "PFY1234, request DCT LOLLS"
TBD -> AD TCU: "PFY1234, concur DCT LOLLS"
Arrivals
Voiceless for all aircraft:
- With ADES YPAD; and
- Assigned a STAR; and
- Assigned
A090
All other aircraft coming from TBD CTA will be Heads-up coordinated to AD TCU.
AD ADC
Auto Release
Next coordination is not required to AD TCU for aircraft that are:
- Departing from a runway nominated on the ATIS; and
- Assigned the standard assignable level; and
- Assigned a Procedural SID
All other aircraft require a Next call to AD TCU.
The Standard Assignable level from AD ADC to AD TCU is:
| Aircraft | Level |
|---|---|
| Jets | A050 |
| Non-Jets | The lower of A040 and RFL |
AD TCU Internal
All aircraft transiting between internal AD TCU boundaries must be heads-up coordinated.
Phraseology
AAW -> AAE: "via AD, FD123"
AAE -> AAW: "FD123, A090"
Boundary coordination is not required between AAW and AAE for aircraft arriving or departing tracking via the 05/23 extended centreline.
Between AAR and TCU
Standard Radar to TCU coordination for each aircraft transiting between Class G and CTA (or vice versa).
PF ADC
Airspace
PF ADC is responsible for the Class D airspace in the PF CTR SFC to A015.
Refer to Reclassifications for operations when PF ADC is offline.
Departures
Next coordination is required from PF ADC to AD TCU for all aircraft entering AD TCU CTA.
The Standard Assignable level from PF ADC to AD TCU is:
| Aircraft | Level |
|---|---|
| All | The lower of A030 and RFL |
Arrivals/Overfliers
AD TCU will heads-up coordinate arrivals/overfliers from Class C to PF ADC prior to 5 mins from the boundary.
IFR aircraft will be cleared for the coordinated approach (Instrument or Visual) prior to handoff to PF ADC, unless PF ADC nominates a restriction.
VFR aircraft require a level readback.
Phraseology
AAW -> PF ADC: "via PAL, YTS"
PF ADC -> AAW: "YTS, A010"
ED ADC
Departures
Next coordination is required from ED ADC to AD TCU for all aircraft.
The Standard Assignable level from ED ADC to AD TCU is:
| Aircraft | Level |
|---|---|
| All | The lower of A040 and RFL |
Arrivals/Overfliers
AD TCU must Heads-up coordinate all arrivals/overfliers to ED ADC.
Phraseology
AD TCU -> ED ADC: "To the west, PLE, for the ILS-Z"
ED ADC -> AD TCU: "PLE, ILS-Z"
Inbound aircraft must be cleared for an instrument or visual approach prior to handoff to ED ADC, unless ADC nominates a restriction.
