4. Brisbane (YBBN)
Runway Modes
01 PROPS

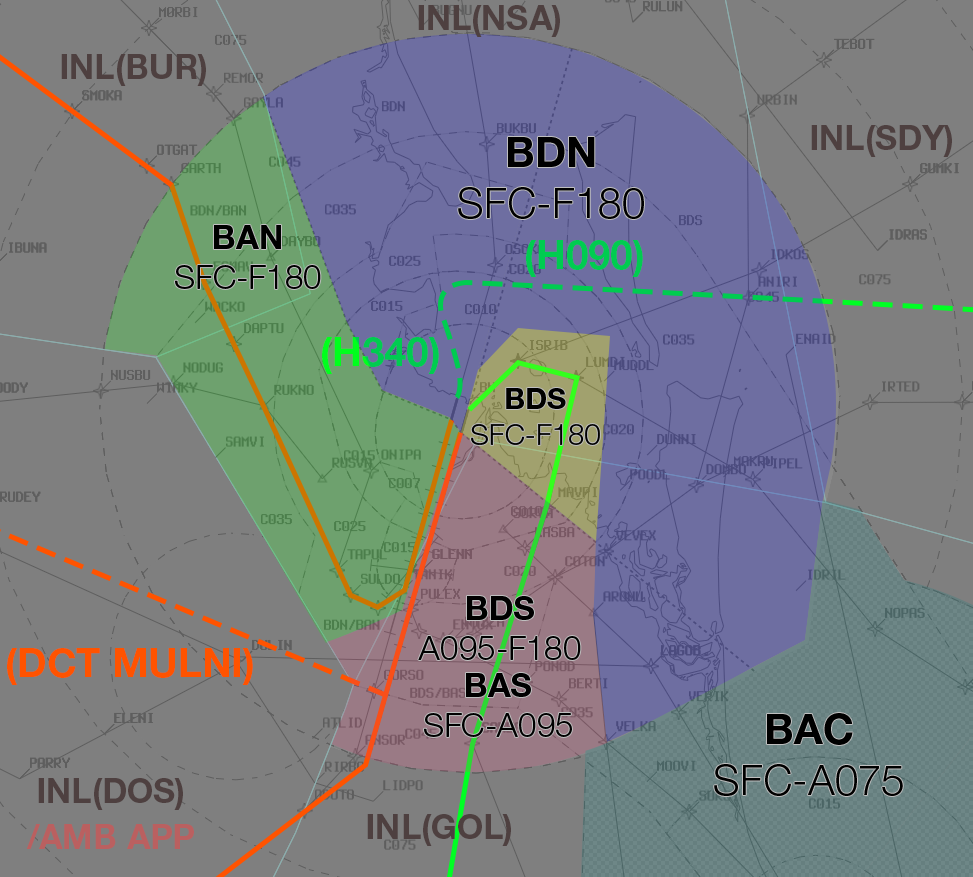

Airspace Division
Non-Standard airspace division will be in use.
The red line represents the STARs to the arrival runways.
The solid green line represents the SID to SANEG.
The dashed green line represents the suggested vectors for 01L Departures.
01L will be the primary runway for arrivals.
01R will be the primary runway for departures.
01L Departures
Departures from Runway 01L will be assigned the BN4 SID with an assigned heading of H340.
Aircraft must then be vectored to the east and handed off to GOL on H090.
19 PROPS

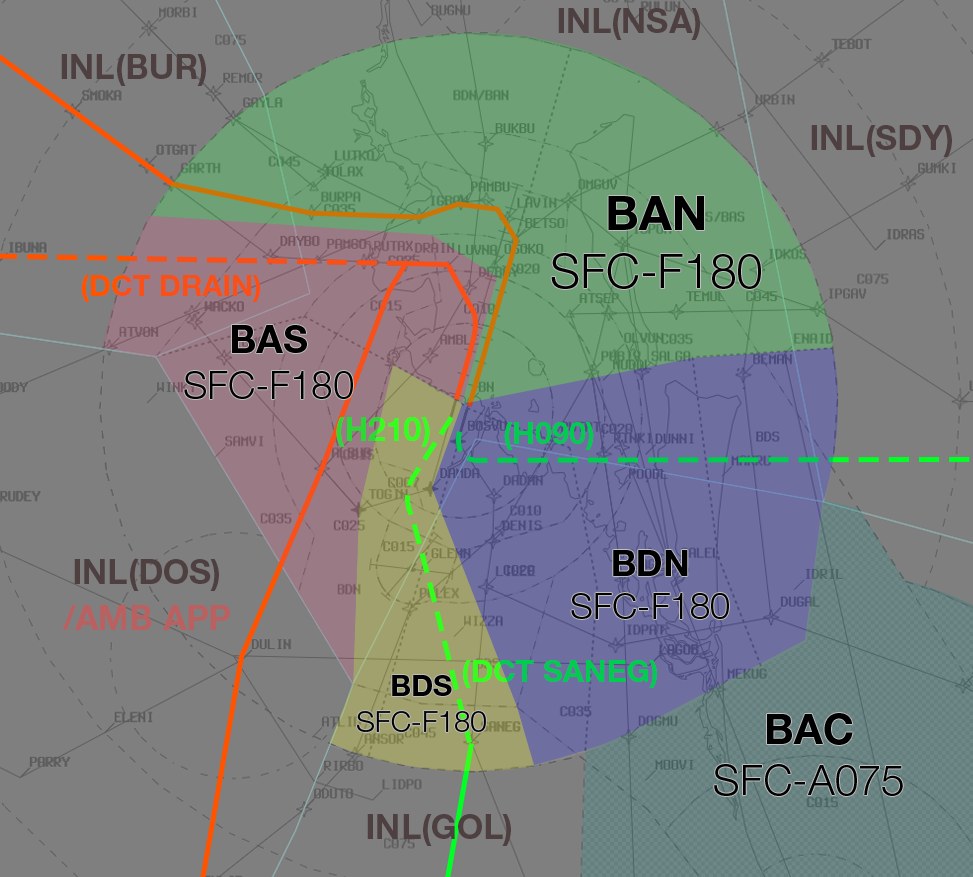

Airspace Division
Non-Standard airspace division will be in use.
The red line represents the STARs to the arrival runways.
The dashed green lines represents the suggested vectors for Departures.
19L will be the primary runway for arrivals.
19R will be the primary runway for departures.
19L Departures
Departures from Runway 19L will be assigned the BN4 SID with an assigned heading of H090.
Aircraft may be handed off to GOL on this heading.
19R Departures
Departures from Runway 19R will be assigned the BN4 SID with an assigned heading of H210.
Aircraft may be cleared DCT SANEG when clear of 19L Departures.
Approach Expectation
All arrivals will be cleared for the Approach type indicated on the ATIS.
Independent Visual Approaches
Although not used at YBBN normally, IVAs can be expected to be in use for WorldFlight, to facilitate the high volume of traffic for both runways.
Aircraft must report both visual, and runway in sight in order to be cleared for an IVA (Runway in Sight implies Visual).
Tip
The Label Data Annotations for these are V for Visual, and R for Runway in Sight
Ensure you familiarise yourself with the applicable Separation Standards
Pass Traffic Information on aircraft that will come within 1.5nm of each other on parallel approaches.
Phraseology
BAN: "UAL8317, Traffic is an A320 at your 2 o'clock for the parallel runway"
19R Arrivals
Runway 19R Arrivals will be assigned the Xray STAR. The preferred approach type will be the Independent Visual Approach, however if weather does not permit this:
- Aircraft that can accept the RNP X Approach will be cleared for it; or
- Aircraft that cannot accept the RNP X Approach, will be cleared LUVNA DCT SABKO for the ILS Approach.
Sector Distribution
In order to balance workload effectively, it is recommended to distribute responsibility for the Brisbane TCU sectors accordingly (BAC not included):
Two Controllers Online
- BAS and BAN combined
- BDS and BDN combined
- No BFL
Three Controllers Online
- BAS and BAN combined
- BDS and BDN combined
- BFL on its own
Four Controllers Online
- BAS on its own
- BAN on its own
- BDS and BDN combined
- BFL on its own
Flow
BFL will formulate the sequence in accordance with the Flow Times below. Ensure that event traffic gets priority over non-event traffic.
Important
It is likely that during the event, there will be no opportunity for non-event traffic to be sequenced for a landing at YBBN. Flow should determine whether an approach slot is available and inform the appropriate enroute controller if a diversion to another aerodrome is necessary.
BFL will construct the sequence via the Arrivals List Window.
Appropriate annotations for the Arrivals List Window can be found here.
Times
The times below indicate the number of minutes from the Feeder Fix to the Runway Threshold on the appropriate STAR.
| FF | Runway | Time |
|---|---|---|
| SMOKA | 01L | 16 |
| SMOKA | 19L | 14 |
| ENLIP | 01R | 11 |
| ENLIP | 19R | 16 |
Subtract 1 minute if assigned MX or CSR.
Speeds
BUR will instruct all arrivals to cross SMOKA and ENLIP at 250 knots, then published STAR speeds.
WorldFlight Teams
WorldFlight Teams will be highlighted by default and should receive priority at all stages of flight.
Most WorldFlight team aircraft will land at YBCG, not YBBN. These aircraft will be routed via IDRAS SCOTT CG.
Coordination
BN ADC
Auto Release
Available for aircraft assigned A060, and:
| Runway | SID | Assigned Heading |
|---|---|---|
| 01L | BN4 | H340 |
| 01R | SANEG2 | - |
| 19L | BN4 | H160 |
| 19R | BN4 | H210 |
BDN/BDS to GOL
Voiceless for all aircraft:
- Assigned the lower of
F180or theRFL; and - Tracking via SANEG.
All other aircraft going to GOL CTA must be Heads-up Coordinated.
BDN to SDY
Voiceless for all aircraft:
- Assigned the lower of
F180or theRFL; and - Assigned H090.
All other aircraft going to SDY CTA must be Heads-up Coordinated.
Exception
In the event that SDY is offline, eastbound aircraft can be handed directly to GOL.
BUR to BAN/BAS
Voiceless for all aircraft:
- With ADES YBBN; and
- Assigned
A090; and - Assigned any of the following:
| STAR | Runway | DCT Tracking available |
|---|---|---|
| SMOKA1A | 01L | None |
| SMOKA1A | 19L | None |
| ENLIP2A | 01R | DCT MULNI |
| ENLIP2X | 19R | DCT DRAIN |
All other aircraft coming from BUR/DOS CTA will be Heads-up Coordinated to BN TCU prior to 20nm from the boundary.
Between BUR/KPL and BFL
BFL must voice coordinate any changes to instructions after BUR/KPL has put a < on it.
BFL must voice coordinate to KPL/BUR any aircraft that must be rerouted via ENLIP for 01R/19R.
Phraseology
BFL -> KPL: "PAA001 via ENLIP for 01R please"
KPL -> BFL: "PAA001 via ENLIP for 01R, will be"
BUR/KPL must voice coordinate any requests for Track Shortening, CSR, or Different STARs, to BFL.
