Aerodrome

Positions

Name	Callsign	Frequency	Login ID
Nadzab ADC	Nadzab Tower	121.700	AYNZ_TWR
Nadzab ATIS		128.100	AYNZ_ATIS

Airspace

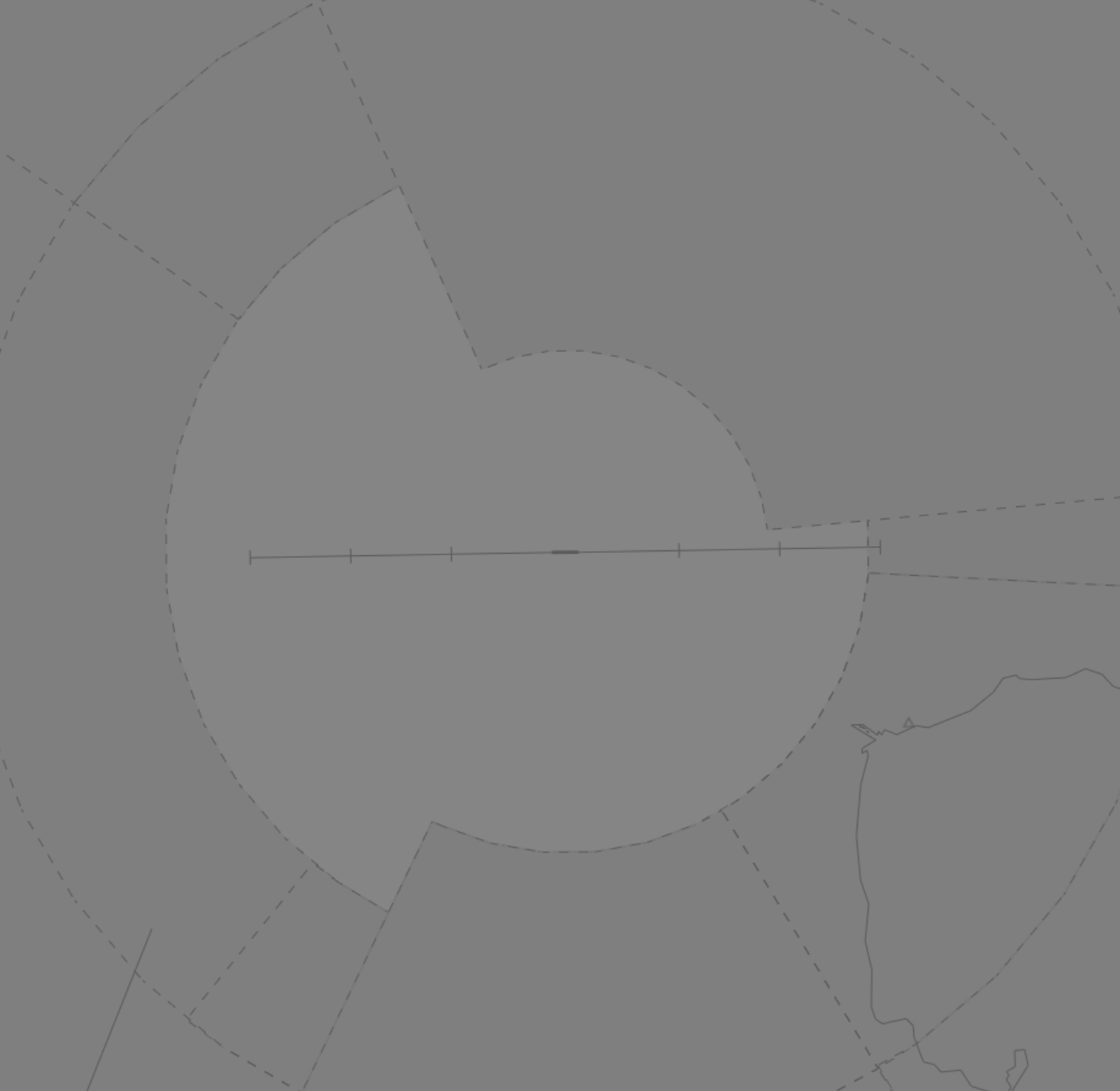

AYNZ ADC is responsible for the Class C Airspace within the AYNZ CTR SFC to A060.

Separation

Surveillance

Surveillance coverage can be expected to be available at all levels in the AYNZ CTR. Although AYNZ ADC is not permitted to use surveillance for separation, AYPM may assist by establishing surveillance separation standards via coordination.

Lateral Separation Points

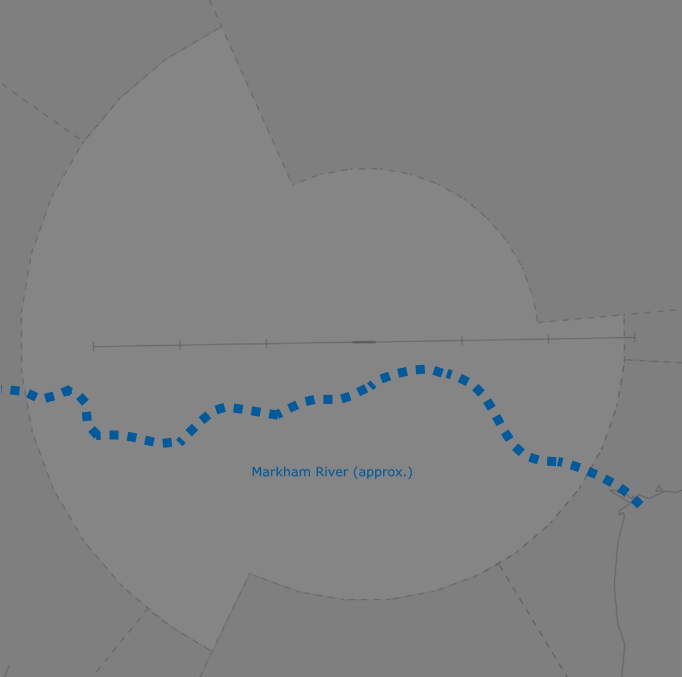

The Markham River runs East-West through the AYNZ CTR south of the Runway 09/27 centreline.

Its prominence and location makes it a convenient option to implement a geographic feature separation standard.

Local Procedures

Standard Departure Clearances

In lieu of a SID, departing aircraft may be issued with a Standard Departure Clearance (SDC). Aircraft cleared via an SDC will depart the circuit visually, and then intercept the track specified by five miles.

AYNZ ADC will clear relevant departures via the appropriate coded SDC, write the departure name in the Global Ops Field.

Phraseology

AYNZ ADC: "...cleared to Guam via Departure 35 then PIKOK flight planned route..."

A list of the Standard Departure Clearances is available in the AIP Flight Supplement.

VFR Operations

Departure/Arrival Gates

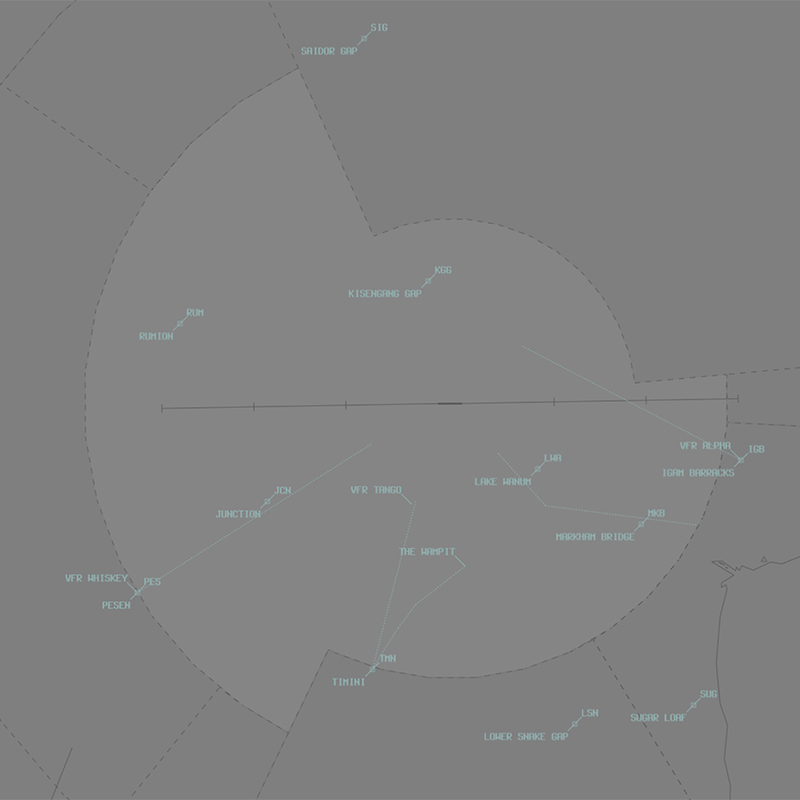

Aircraft should report at the standard VFR Departure/Arrival Gates.

Direction from AYNZ	Code	Name	Dep/Arr
North	SIG	Saidor Gap	Both
North	KGG	Kisengang Gap	Both
East	IBG	Igam Barracks	Both
Southeast	LWA	Lake Wanum	Both
Southeast	SUG	Sugar Loaf	Both
Southeast	SAL	Salamaua	Both
Southeast	MKB	Markham Bridge	Both
South	LSN	Lower Snake Gap	Both
South	TMN	Timini	Both
Southwest	PES	Pesen	Both
West	RUM	Rumion	Both
West	JCN	Junction	Both

Inbound/Outbound Routes

Victor	Inbound	Outbound
Alpha	IBG-Ngaro Post Office	Ngaro Post Office-IBG
Mike	Lae-MKB-Umsis-Mt Ngaroneno	Mt Ngaroneno-Umsis-MKB-Lae
The Wampit	TMN to Gabensis following the Lae-Bulolo Road	Gabensis to TMN following Lae-Bulolo Road
Tango	Mari-TMN	TMN-Mari
Whiskey	Track NZ VOR 237 Radial inbound, remaining south of Watut River	Track 237 NZ radial outbound, remaining south of Watut River

Helicopter Operations

Helipads and Landing Areas

There are no controlled helipads at AYNZ. While most helicopters operate in Lae outside the AYNZ CTR, there is a private helipad within the CTR at the Crossroads Hotel, 12.9NM southeast of the ARP.

Helicopters using this helipad be instructed to 'report on the ground'/'report when airbourne' in lieu of an explicit clearance.

Important

The Crossroads helipad sits less than 1NM northeast of the LARID-NZ. Helicopters using the pad are not laterally separated from aircraft tracking LARID-NZ or from aicraft on the VOR approach to Runway 27. AYNZ ADC must ensure an alternate separation standard is in place at all times.

SID Selection

There are no SIDs at AYNZ. In VMC by day, all aircraft shall be assigned a visual departure.

Otherwise:

IFR aircraft departing via MUDIX shall be assigned the GOROKA 1 or GOROKA 2 DME departure.
IFR aircraft departing via LARID shall be assigned the LAE DME departure.
IFR aircraft not departing via MUDIX or LARID should be assigned an SDC and/or sector DME departure.

Coordination

Departures

Next coordination is required from AYNZ ADC to AYNZA for all aircraft entering AYNZA CTA.

The Standard Assignable Level from AYNZ ADC to AYNZA is:

Aircraft	Level
All	The lower of `A050` and `RFL`

Arrivals

AYNZA will heads-up coordinate all arrivals/overfliers to AYNZ ADC.

Aircraft on an instrument approach will be cleared for the approach prior to handoff to AYNZ ADC, unless AYNZ ADC nominates a restriction.
Aircraft on a visual approach will be coordinated, but will receive their approach clearance and circuit joining instructions from AYNZ ADC.

Phraseology

AYNZA -> AYNZ ADC: "Via LARID for the RNAV, PXB.”
AYNZ ADC -> AYNZA: "PXB."

Charts

Reference

Charts can be found on the PNG AIP Flight Supplement.
