Edinburgh (YPED)
Positions
| Name | Callsign | Frequency | Login ID |
|---|---|---|---|
| Edinburgh ADC | Edinburgh Tower | 118.300 | ED_TWR |
| Edinburgh SMC | Edinburgh Ground | 134.100 | ED_GND |
| Edinburgh ATIS | 126.250 | YPED_ATIS |
Note
YPED is a military aerodrome and procedures can differ significantly to those at a civil aerodrome. Ensure you are familiar with the military controller skills necessary to provide a quality service.
Airspace

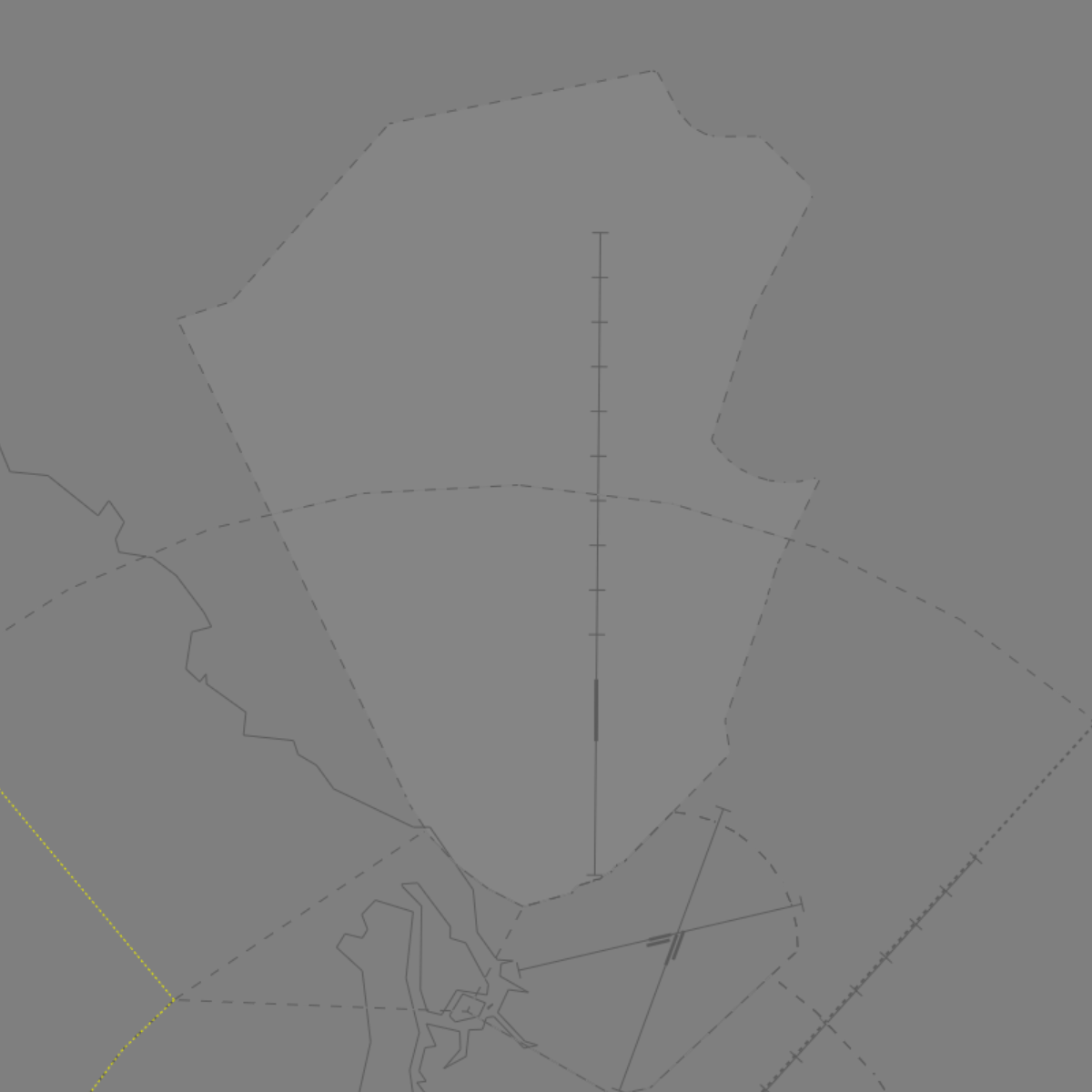

ED ADC is responsible for the Class C airspace in the ED MIL CTR SFC to A015.
Restricted Area Activations
There are no restricted areas or MOAs activated by default when ED ADC is online.
SUA in TCU Airspace
Military operations taking place in SUA in TCU airspace are outside the jurisdiction of ED ADC.
ED SMC must give heads up coordination to relevant TCU controllers before providing airways clearance to an aircraft intending to operate in a currently inactive SUA.
This gives the parent controller sufficient time to assess the request, make necessary adjustments to any aircraft in the area currently, and activate the SUA; or alternately to refuse the activation request before the aircraft is in the air.
Local Procedures
Inital and Pitch
The initial points are east of the runway, at the following locations. Aircraft will pitch west in order not to impede on the Class G boundary.
| RWY | Initial Point | Altitude |
|---|---|---|
| 18 | 2NM South | A015 |
| 36 | 4NM North | A015 |
Helicopter Operations
Helipads

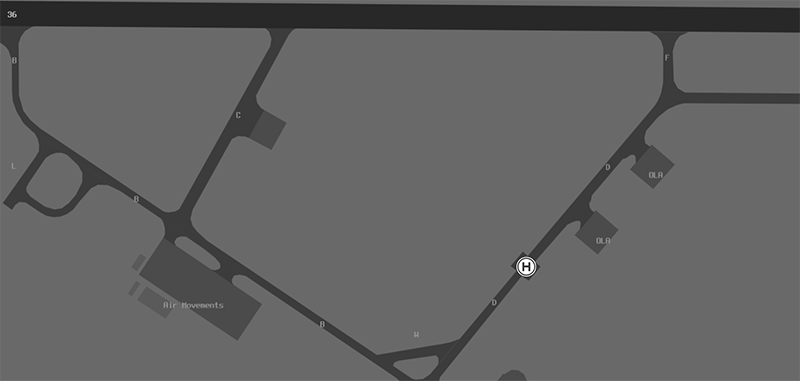

There is one helipad at YPED, on Taxiway D immediately east of OLA 11.
The helipad is part of the manoeuvring area and controlled by ED SMC. Any helicopter taking off or landing on the helipad requires a specific takeoff or landing clearance from ADC, following the appropriate coordination with SMC.
Phraseology
ED ADC: "CHOP41, taxiway D, cleared to land"
Runway Modes
Circuits

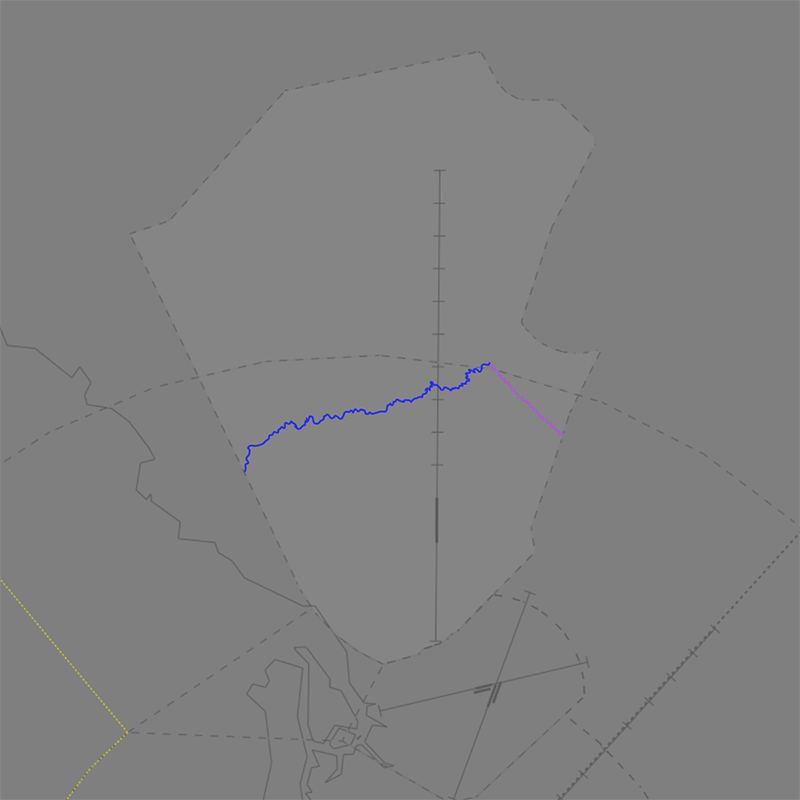

Circuit operations occur within the CTR bounded by the Gawler River to the north and the powerline running from the Gawler River (1.5NM south of the Gawler Township) to the south eastern boundary of the ED CTR.
Circuit Heights
| Type | Normal Altitude |
|---|---|
| Non Jet | A015 |
| Jet | A020 |
Circuit Direction
| Runway | Direction |
|---|---|
| 18 | Left |
| 36 | Left |
Coordination
Departures
Next coordination is required from ED ADC to AD TCU for all aircraft.
The standard assignable level from ED ADC to AD TCU is:
| Aircraft | Level |
|---|---|
| All | The lower of A040 and RFL |
Departures Controller
When an AD TCU controller is online, aircraft shall be issued with a departure frequency during their airways clearance in accordance with the table below. If no TCU controllers are online, the appropriate enroute frequency or advisory frequencyshall be issued.
| Runway | Via | Departure Frequency |
|---|---|---|
| All | All | 124.2 (AAW) |
Arrivals/Overfliers
AD TCU will Heads-up coordinate all arrivals/overfliers to ED ADC.
Phraseology
AD TCU -> ED ADC: "To the west, PLE, for the ILS-Z"
ED ADC -> AD TCU: "PLE, ILS-Z"
Inbound aircraft will be cleared for an instrument or visual approach prior to handoff to ED ADC, unless ADC nominates a restriction.
SMC to AD TCU
The controller assuming responsibility of SMC shall give heads-up coordination to AD TCU (or the enroute controller responsible for the AD TCU) prior to the issue of a clearance to an aircraft intending to operate in an SUA that has not been activated.
Phraseology
ED SMC -> AAW: "STKR11 requests clearance to R265B"
AAW -> ED SMC: "STKR11, clearance approved."
Charts
Reference
In addition to the civilian ERSA and AIP publications, the RAAF AIP website contains the necessary charts (available in the TERMA) and description of procedures (in each airports' FIHA).
