Aerodrome

Positions

Name Callsign Frequency Login
Port Moresby ADC Jacksons Tower 118.100 AYPY_TWR
Port Moresby SMC Jacksons Ground 121.700 AYPY_GND
Port Moresby ATIS 128.000 AYPY_ATIS

Airspace

AYPY ADC is responsible for the Class C Airspace within the AYPY CTR SFC to A020.

Port Moresby ADC Airspace

Port Moresby ADC Airspace

Maneuvering Area

Responsibility

ADC is responsible for Taxiways M, F, and A beyond the Runway 14R/32L holding points. ADC is also responsible for the engine runup bay (the decommissioned section of Runway 14R/32L between Taxiways L and A1).

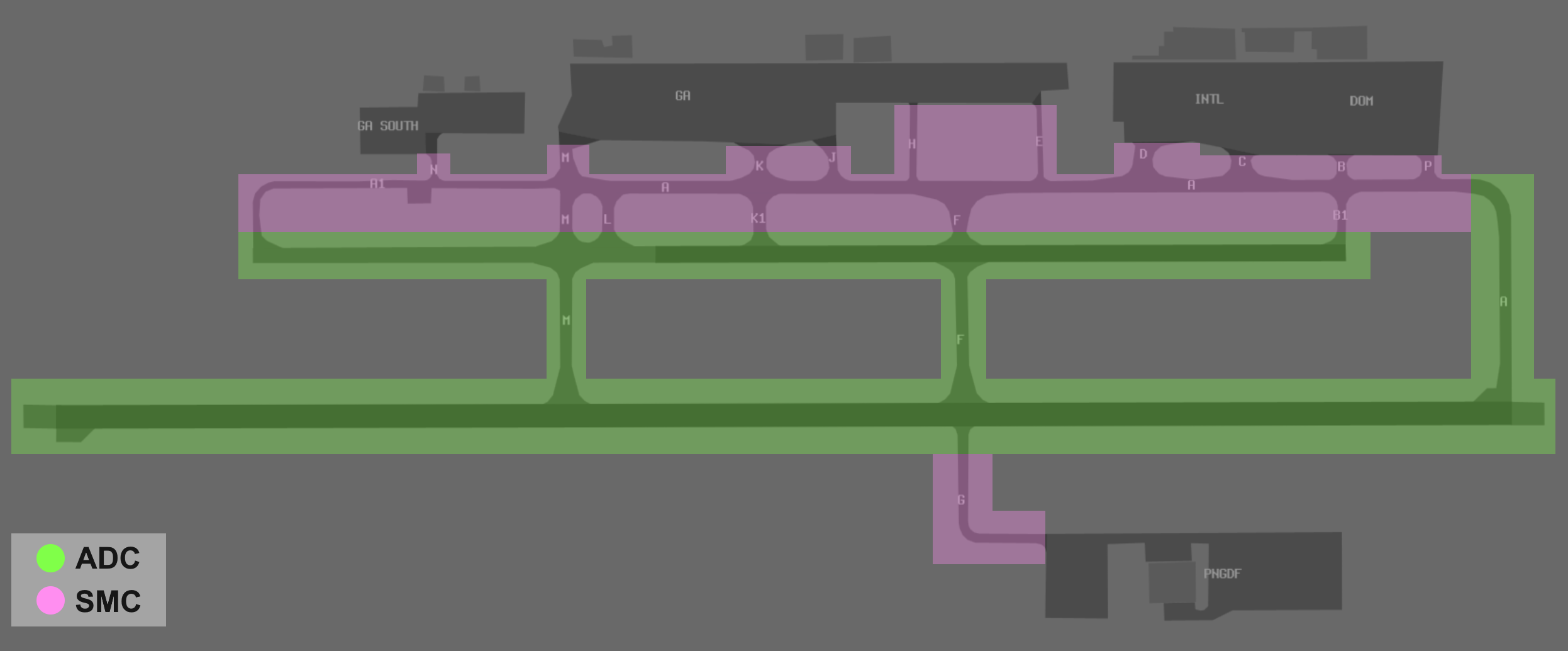

AYPY Maneuvering Area Responsibility

AYPY Maneuvering Area Responsibility

Note

While Taxiways A and M do not directly intersect Runway 14R/32L, they must still be kept clear of traffic for arriving and departing traffic. All aircraft need explicit clearance to cross the Runway 14R/32L holding points on these taxiways.

Unless operationally required, AYPY ADC should consider releasing Runway 14R/32L to AYPY SMC to minimise the need for coordination.

Local Procedures

Standard Departure Clearances

In lieu of a SID, departing aircraft may be issued with a Standard Departure Clearance (SDC). Aircraft cleared via an SDC will depart the circuit visually, and then intercept the track specified by five miles.

AYPY SMC will clear relevant departures via the appropriate coded SDC, write the departure name in the Global Ops Field.

Phraseology

AYPY SMC: "...cleared to Cairns via Departure 56 then KAPSO flight planned route..."

A list of the Standard Departure Clearances is available in the AIP Flight Supplement.

Daugo Training Area

The AYD901 (Daugo) Danger Area is in the south-west AYPY CTR, SFC to A040, and is used for flight training and practice approaches.

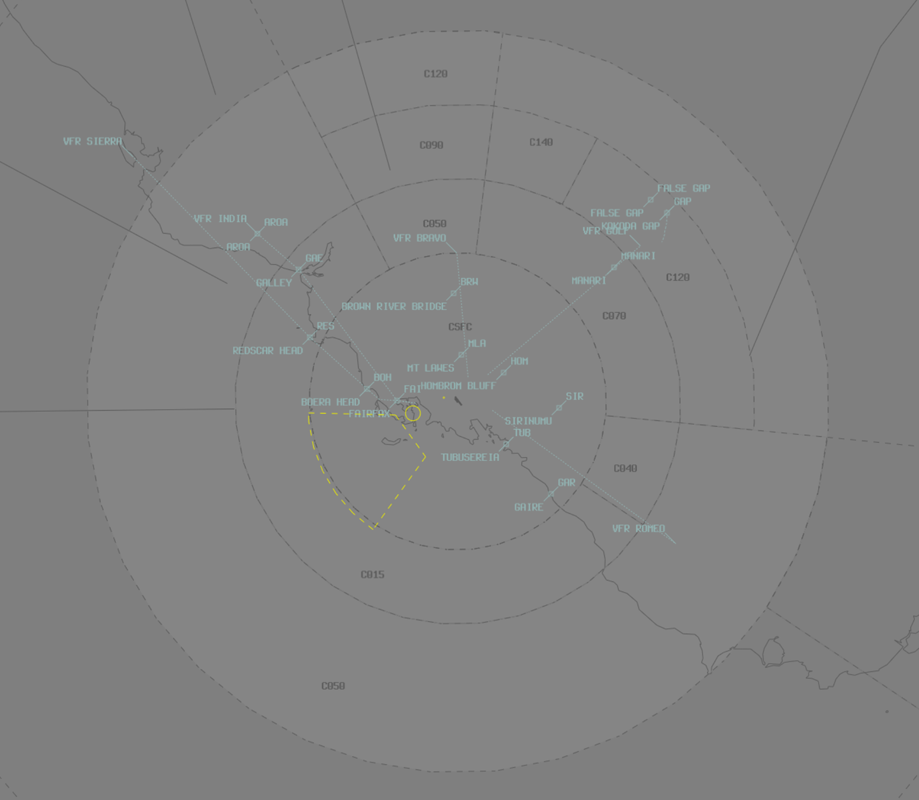

AYD901 (Daugo) Danger Area

AYD901 (Daugo) Danger Area

When activated, the airspace is administered by AYPYA.

Runway Modes

Runway Selection

The preferred runway direction is Runway 14.

Runway 14L shall be used for arrivals and departures when winds favour Runway 14 direction, or when:

  • Tailwind less than 5 kts; and
  • By day; and
  • in VMC; and
  • the runway is dry.

In all other conditions, Runway 32R shall be used for arrivals and departures.

Special Runway Operations

Parallel Runway Operations

Simultaneous parallel runway operations, including PROPS and SODROPS, are not authorised at AYPY. Departures on parallel runways should be sequenced so that no aircraft is departing simultaneously with a departure or missed approach on the other runway.

Important

Separation between traffic on parallel runways is not ensured by SIDs or approach procedures. Aircraft performing a missed approach, or departing Runway 14L/32R via some SIDs, will turn and cross the extended Runway 14R/32L centreline.

Runway 14R/32L

Runway 14R/32L is the shorter of the two parallel runways and is restricted to aircraft below 23,000KG MTOW. The runway is unlit, and cannot be used at night.

Circuits

Runway Direction
14L Left
32R Right
14R Right
32L Left

SID Selection

Aircraft planned via GUNKI, LOTGU, NUPTA, ODOGA, RUVKI, STARF, TOMOM or UNSAM shall be assigned the Procedural SID that terminates at the appropriate waypoint. Jet aircraft not planned via any of these waypoints shall receive amended routing via the most appropriate SID terminus, unless the pilot indicates they are unable to accept a Procedural SID.

Aircraft departing Runway 14R/32L and aircraft that are unable to accept a Procedural SID may be assigned an SDC, or a visual departure.

ATIS

Approach Expectation

If visual approaches are in operation the APCH field must state EXP VISUAL APCH.

Coordination

Auto Release

'Next' coordination is not required to AYPYA for aircraft that are:

  • Departing from a runway nominated on the ATIS; and
  • Assigned the standard assignable level; and
  • Assigned a Procedural SID.

All other aircraft require a 'Next' call to AYPYA.

The standard assignable level from AYPY ADC to AYPYA is the lower of A050 or the RFL.

Charts

Reference

Charts can be found on the PNG AIP Flight Supplement.
