Broome (YBRM)

Positions

Name Callsign Frequency Login ID
Broome ADC Broome Tower 126.000 BRM_TWR
Broome SMC Broome Ground 121.700 BRM_GND
Broome ATIS 128.200 YBRM_ATIS

Airspace

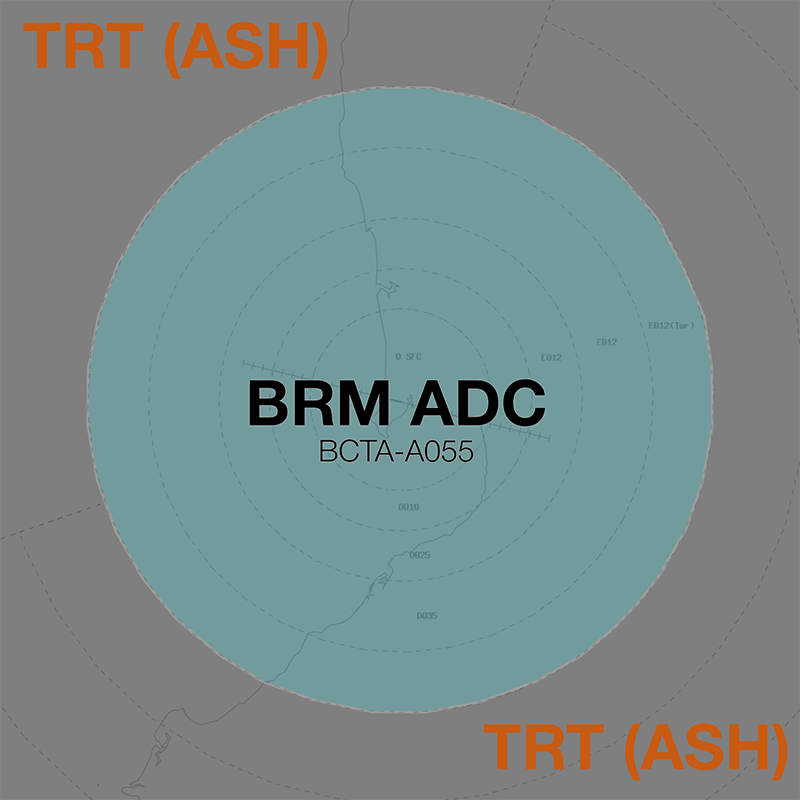

BRM ADC Airspace

BRM ADC Airspace

BRM ADC is responsible for the Class D airspace SFC to A055, as well as the Class E airspace 1200ft AGL to A055, within the BRM CTR.

Refer to Class D Tower Separation Standards for more information.

Surveillance

Surveillance coverage can be expected to be available at all levels in the BRM CTR. Although BRM ADC is not permitted to use surveillance for separation, TRT(ASH) may assist by establishing surveillance separation standards via coordination

Local Lateral Separation Points

Due to the convergence of inbound/outbound air routes approaching BRM, the geographic feature separation standard may be useful to efficiently process opposite direction aircraft from the north or south.

The coastline is a good reference for this standard.

Phraseology

FHG is outbound from YBRM for Port Headland (southwest) and has reported visual. An aircraft is inbound to YBRM from the same direction, tracking over land.
BRM ADC: "FHG, track to remain at least 1nm offshore, report established"
FHG: "Track to remain at least 1nm offshore, FHG"

FHG: "FHG, established 1nm offshore"
FHG is now laterally separated from aircraft over land
BRM ADC: "FHG, climb to A085"
FHG: "Climb to A085, FHG"

Coordination

Departures

A 'next' call is made for all aircraft entering TRT(ASH) CTA when they are next to depart. BRM ADC must inform TRT(ASH) if the aircraft does not depart within 2 minutes of the next call.

Phraseology

BRM ADC -> ASH: "Next, NWK1653"
ASH -> BRM ADC: "NWK1653, Unrestricted"
BRM ADC -> ASH: "NWK1653"

The Standard Assignable level from BRM ADC to TRT(ASH) is the lower of A050 or the RFL, any other level must be prior coordinated.

Arrivals/Overfliers

TRT(ASH) will heads-up coordinate all arrivals/overfliers to BRM ADC

Phraseology

ASH -> BRM ADC: "Via CIN, ANO332”
BRM ADC -> ASH: "ANO332"

The Standard Assignable level from TRT(ASH) to BRM ADC is A060, any other level must be prior coordinated.
